What is X-CORE² technology?

X-CORE² is TORRI's patent-pending technology based on an engineered frame with a polymer insert that generates the so-called "slab effect": it redistributes mechanical stresses across the entire panel surface, with over 75% reduction of the concentrated load and load redistribution up to 5 times greater than a traditional frame. The result is a more robust module that can be walked on and is protected against silicon microcracks.

Do TORRI photovoltaic panels resist hail?

Yes. Thanks to the PRISMA 4.0 construction model, TORRI modules are up to 8 times more hail-resistant than the market standard and the reference IEC requirements, keeping the silicon circuit intact over time.

Can you walk on photovoltaic panels?

In general, walking on a panel can cause invisible microcracks and power loss. TORRI's X-CORE² technology makes the module walkable by drastically reducing the concentrated load during installation and maintenance, minimising the risk of damage to the silicon.

How robust are TORRI panels?

TORRI modules are up to 3 times more robust against accidental impacts and withstand up to 750 kg/m² of snow load, thanks to the PRISMA 4.0 construction philosophy and X-CORE² technology.

Where are TORRI photovoltaic panels produced?

TORRI designs and produces its photovoltaic panels in Italy, at the Brescia technology hub of around 10,000 sqm, where production, research and testing of new technologies take place: true Made in Italy photovoltaics.

What is the difference between PRISMA 4.0, X-CORE², ECO-RED and AURA?

PRISMA 4.0 is the construction model that maximises robustness and silicon protection; X-CORE² is the patent-pending frame that redistributes loads and makes the module walkable; ECO-RED is the line dedicated to aesthetics and architectural integration; AURA is the storage and charging ecosystem that completes the system.

Technologies · X-CORE², PRISMA 4.0, ECO-RED and AURA

Prisma 4.0 · Protects up to 8× more

IRS · Static Robustness Index

+ material = + resistance to external factors

Discover more

X-CORE² is the only frame that redistributes loads

Market scenarios

The mainstream is too fragile.

IEC standards are not enough to protect against low product quality.

Fonte CEA — Complex Cracks

Source: Clean Energy Associates (CEA) — Ankil Sanghvi, Claire Kearns-McCoy.

Test 1 / 4

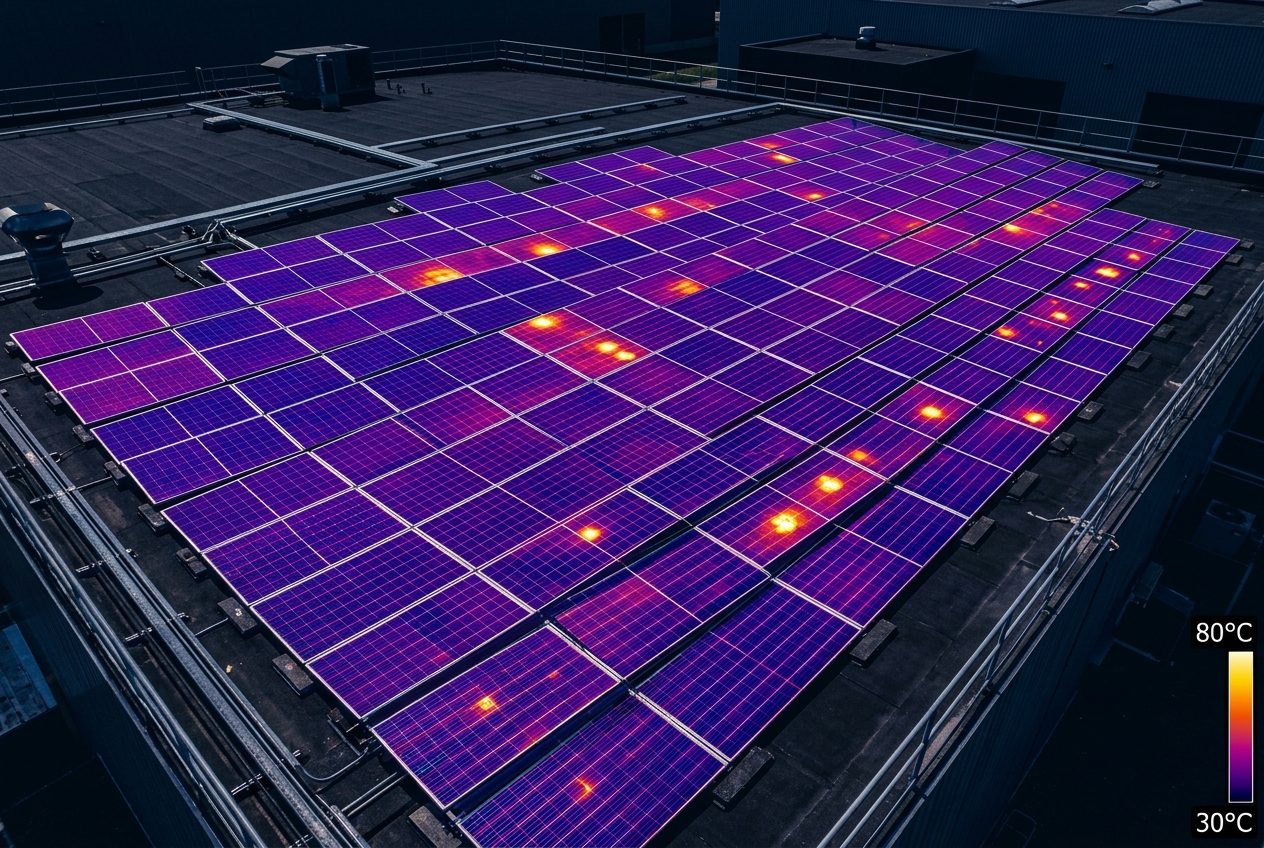

Thermography

Detects the module's thermal behaviour: it highlights hot spots and inactive areas that overheat. It shows the symptoms of malfunction but does not identify its cause (factory, transport, installation or maintenance).

PRISMA 4.0 protects up to 8 times more

IRS.
Static Robustness Index.

Robustness index of the photovoltaic panel. It expresses the amount of material placed between the external environment and the silicon.

+ material + resistance to external factors

The weight-to-power ratio must be further related by highlighting the front material. It is from the front that, over the years, the photovoltaic panel is stressed by external agents, weather or mechanical, e.g. operators during installation and maintenance.

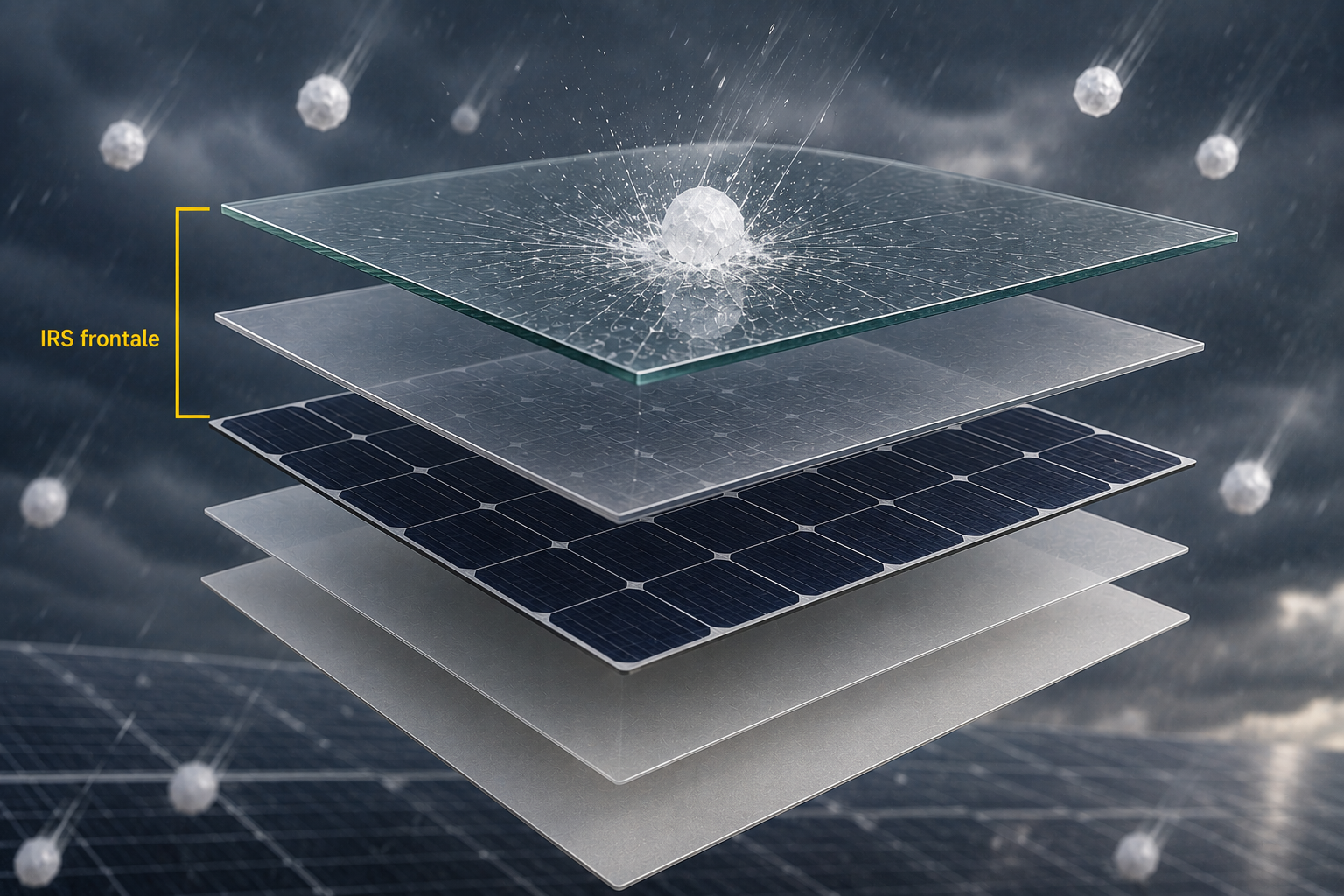

IRS frontale — stratigrafia del pannello fotovoltaico

Front material coefficient

×0,95 · glass / polymer. This is the construction model with the greatest material-density imbalance in front of the silicon.

×0,5 · glass / glass. Usually assembled with front and back glass of equal thickness, therefore with weight and density evenly distributed.

TORRI PRISMA 4.0 · 24.000g / 450W × 0,9550.6

Mainstream glass/glass · 21.000g / 450W × 0,5 · vetro 2mm23.3

Mainstream glass/polymer · 18.000g / 450W × 0,95 · vetro 3,2mm38

Custom sizing · enter the data below—

Front material coefficient

×0,95 · glass / polymer. This is the construction model with the greatest material-density imbalance in front of the silicon.

×0,5 · glass / glass. Usually assembled with front and back glass of equal thickness, therefore with weight and density evenly distributed.

Calculate the IRS

Compare with other products

Enter the weight and power of any module to estimate its Static Robustness Index.

Weight (kg)Power (Watt)

Front material

Enter both values to calculate the index.

< 30 · very fragile / evaluate the application and handle with extreme care30–50 · standard product> 50 · robust product

Research · Testing · Safety

UnConventional Thinking.

We investigate often overlooked but decisive aspects. Hail, footfall, snow load and thermal stress tests: eliminating external variables means being self-sufficient without surprises.
