| Configuration | Glass - Polymer |
| Colour | Silver frame / White background |
| Cell technology | PERC |
| Number of cells | 60 celle |
| Layout ratio | 0,201 kWp/m² |
| Number of busbars | 5 Bus Bar |
| Dimensions | 1002 mm x 1665 mm |
| Frame thickness | 35 mm |
| Weight | 22 Kg |
| Cable length | +1000 mm |
| Snow load resistance | 750 Kg/m² |
| Hail resistance | HW5 (Ø45mm, 110Km/h) |
Monocrystalline PERC silicon photovoltaic module: 330/335 Watt, 60 cells. PRISMA 4.0 technology: 4 mm internal prismatic glass, front POE polymer with a density of 430 g/m³, transparent backsheet, silver frames. Dimensions 1665x1002x35 mm, weight 21 kg, static load resistance 750 kg/m², hail resistance 45 mm at 110 km/h. 30-year warranty on manufacturing defects and 30-year linear performance warranty. Class 1 fire reaction.
| Glass thickness | 4,0 mm |
| Glass composition | low-iron tempered |
| Glass type | internal prismatic |
| Nanotechnology treatment | ARC (Anti-reflecting-coating) |
| Solar transmittance | ≥ 93,8 % |
| Polymer composition | POE (Polyoxyethylene) |
| Polymer density | 430 gr/m² |
| Pmpp (Wp) | Vmpp (V) | Impp (A) | Voc (V) | Isc (A) | Prod. eff. (%) | Circuit eff. (%) | |
| TRS 330-220M-SILVERED | 330 Wp | 38,80 V | 9,76 A | 41,60 V | 10,30 A | 19,82 % | 22,6 % |
| TRS 335-220M-SILVERED | 335 Wp | 34,00 V | 9,85 A | 41,80 V | 10,39 A | 20,15 % | 22,9 % |
| Coefficiente Pmpp | Coefficiente Voc | Coefficiente Isc | NOCT | |
| TRS 330-220M-SILVERED | -0,30 % / °C | -0,25 V % / °C | +0,046 % / °C | 45°C ± 2°C |
| TRS 335-220M-SILVERED | -0,30 % / °C | -0,25 V % / °C | +0,046 % / °C | 45°C ± 2°C |
| IEC 61215 - 2:2017 (ed.II) | TÜV SÜD |
| IEC 61730 - 2:2018 (ed.II) | TÜV SÜD |
| PID / Salt Mist / Ammonia | TÜV SÜD |
| Fire reaction: Class 1 (UNI 917A) | Istituto Giordano |
| PRISMA 4.0 technology | University of Brescia |
| ISO 9001:2015 Quality | KIWA |
| ISO 14001:2015 Environment | KIWA |
| ISO 45001:2018 Safety | KIWA |
| Factory Inspection Attestation Photovoltaic (PV) Panels | KIWA |
| Manufacturing defects | 30 years |
| Linear performance | 30 years |
| PPS | Reserved for partner installers |
*We define all our products through circuit efficiency, an index we developed to relate the maximum cell efficiency to the size of the photovoltaic panel in order to achieve the best thermal performance.
**STC (standard test conditions) - 1000 Watt/m², AM 1.5, 25°C
***PPS (Product/Performance/Service) - Warranty reserved for partners covering the labour required for the possible replacement of defective products for the first two years.
****Factory Inspection is not available for all products; please ask the sales office before purchase.
Technical specifications are subject to continuous updates and may change at any time without notice. Please verify warranty conditions and validity directly with the company at the time of purchase.

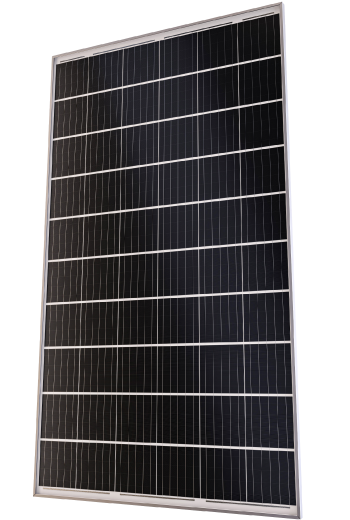

Silvered · Monocristallino PERC
Silvered 4.0
High-robustness silver module for industrial and commercial revamping systems.
The product
Monocrystalline PERC silicon photovoltaic module: 330/335 Watt, 60 cells. PRISMA 4.0 technology: 4 mm internal prismatic glass, front POE polymer with a density of 430 g/m³, transparent backsheet, silver frames. Dimensions 1665x1002x35 mm, weight 21 kg, static load resistance 750 kg/m², hail resistance 45 mm at 110 km/h. 30-year warranty on manufacturing defects and 30-year linear performance warranty. Class 1 fire reaction.
Circuit efficiency
Product warranty
IRSf · Static Robustness Index
Technologies used
PERC and polycrystalline cells for Revamping
TORRI modules for photovoltaic revamping can be made with monocrystalline or polycrystalline PERC cells, allowing intervention even on previous-generation systems with configurations that are hard to find on the market today.
The cell technology is selected according to the characteristics of the module to be replaced. The aim is not simply to increase the nominal power, but to achieve the correct electrical matching with the existing system.
For each configuration, Voc, Vmp, Isc, Imp, the I-V curve, temperature coefficients and the number and arrangement of cells are analysed, verifying their compatibility with string voltage, the MPPT window and the inverter's operating limits.
The use of polycrystalline cells also makes it possible to develop dedicated solutions for replacing previous-generation modules, seeking electrical and dimensional characteristics consistent with the original ones.
The mechanical construction can also be configured considering the module's dimensions, cell arrangement, junction box position, wiring and mounting system.
In this way the new module is designed to integrate into the existing electrical and mechanical architecture, reducing mismatch and system modifications and enabling revamping even on configurations no longer available in standard photovoltaic production.
ARC — Anti-Reflective Coating
The front glass is treated with a nanostructured ARC anti-reflective coating, designed to increase the transmittance of solar radiation towards the cells.
The coating creates a layer with a refractive index intermediate between air and glass, reducing the index jump at the interface and therefore the optical losses due to reflection according to Fresnel's laws.
The structure and optical thickness of the coating are also designed to generate destructive interference between the components of reflected light, further decreasing reflectance at the wavelengths relevant to photovoltaic conversion.
The result is greater solar transmittance of the glass and an increase in the photon flux incident on the cells, with a reduction in the module's optical losses.
Complete datasheet
Hail resistance — IEC 61215 MQT 17
The hail resistance of a photovoltaic module is verified through controlled impact tests in accordance with IEC 61215-2 – MQT 17 Hail Test.
The test uses ice balls of defined diameter and mass, accelerated to a preset speed and directed at specific points of the module. It therefore evaluates not only the size of the hailstone: the fundamental physical parameter is the kinetic energy transferred during impact, determined by mass and, above all, by the square of the speed:
Test levels and impact energy
| Diameter | Mass | Speed | Kinetic energy |
|---|---|---|---|
| 25 mm | 7,5 g | 23,0 m/s | ≈ 2,0 J |
| 35 mm | 20,7 g | 27,2 m/s | ≈ 7,7 J |
| 45 mm | 43,9 g | 30,7 m/s | ≈ 20,7 J |
| 55 mm | 80,2 g | 33,9 m/s | ≈ 46,1 J |
| 65 mm | 132 g | 36,7 m/s | ≈ 88,9 J |
| 75 mm | 203 g | 39,5 m/s | ≈ 158 J |
Why impact energy matters
The base level of 25 mm subjects the module to about 2 Joules. As the hailstone diameter increases, the rise in severity is not linear: a 55 mm ball reaches about 46 Joules, over 23 times the kinetic energy of the 25 mm test. With a 75 mm ball it reaches about 158 Joules, almost 80 times the energy of the base level.
For this reason, knowing only the diameter of the hail is not enough to assess a module's resistance: diameter, mass, speed and impact energy must be considered together.
What is stressed during impact
The impact does not affect the glass alone. The energy is transferred through the entire module structure and can cause:
- —breakage or damage to the front glass
- —microcracks and cell fractures
- —damage to the interconnections
- —local deformation of the laminate
- —loss of insulation or deterioration of the electrical characteristics
This is why TORRI works on the module's resistance as a complete system: 4 mm front glass, laminate structure, high-density encapsulation and mechanical protection of the cells all contribute to the panel's ability to dissipate the energy generated by the impact.
Hail resistance is therefore not just glass resistance: it is the resistance of the entire architecture of the photovoltaic module.
*We define all our products through circuit efficiency, an index we developed to relate the maximum cell efficiency to the size of the photovoltaic panel in order to achieve the best thermal performance.
**STC (standard test conditions) - 1000 Watt/m², AM 1.5, 25°C
***PPS (Product/Performance/Service) - Warranty reserved for partners covering the labour required for the possible replacement of defective products for the first two years.
****Factory Inspection is not available for all products; please ask the sales office before purchase.
Technical specifications are subject to continuous updates and may change at any time without notice. Please verify warranty conditions and validity directly with the company at the time of purchase.
Documentation
Datasheet
PDF · Silvered 4.0
All documents in the Customer Area
Log in to the Customer Area to download all product documentation: datasheets, manuals, certifications and warranties.
| Model | Power | Dimensions | No. of cells | Datasheet |
|---|---|---|---|---|
| TRS 290-220P-SILVERED | 290 Wp | 990 x 1640 mm | 60 celle |
